Hollow Section Steel Connection or HSS Steel Connection


This program can do all kinds of hollow section steel connection design.

We provide a tutorial video in Youtube to show the step by step on how to use this program to design a HSS connection.

Tutorial HSS Connection - Brace           Tutorial HSS Connection - Working Sheet

In HSS connection, when gusset/shear tab connecting to HSS wall, we provide the option of Double Clip Angle, Shear Tab, and Shear Tab with Reinforced Plate option.
The reason for reinforced plate welded to HSS wall is to resolve the HSS wall punching shear check bottlneck issue.

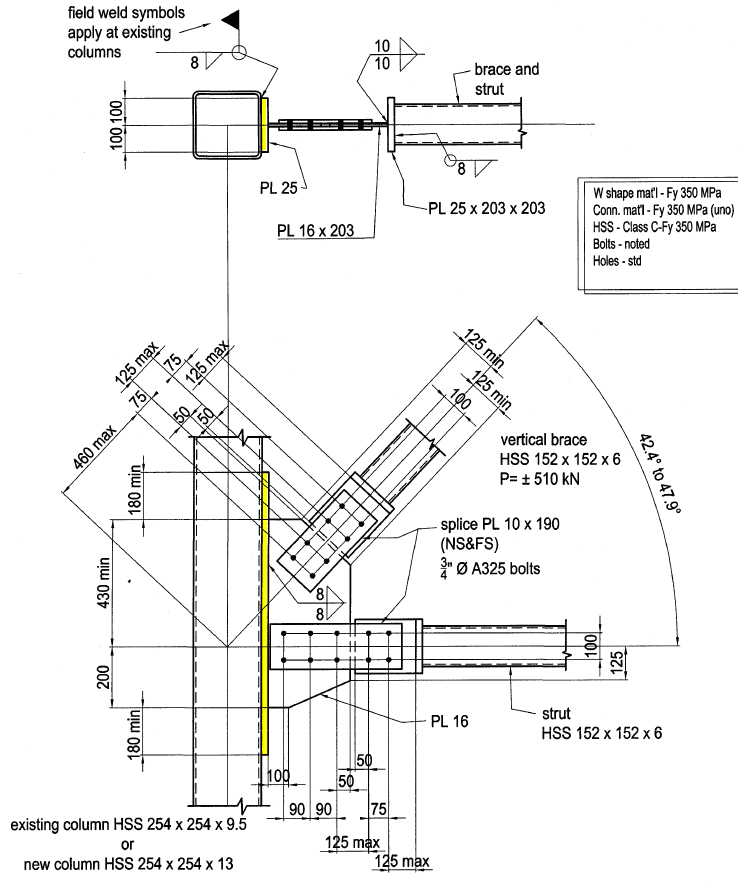

    Base Plate Vertical Brace      BR-1        Youtube Tutorial     Vertical Brace      BR-2        Youtube Tutorial

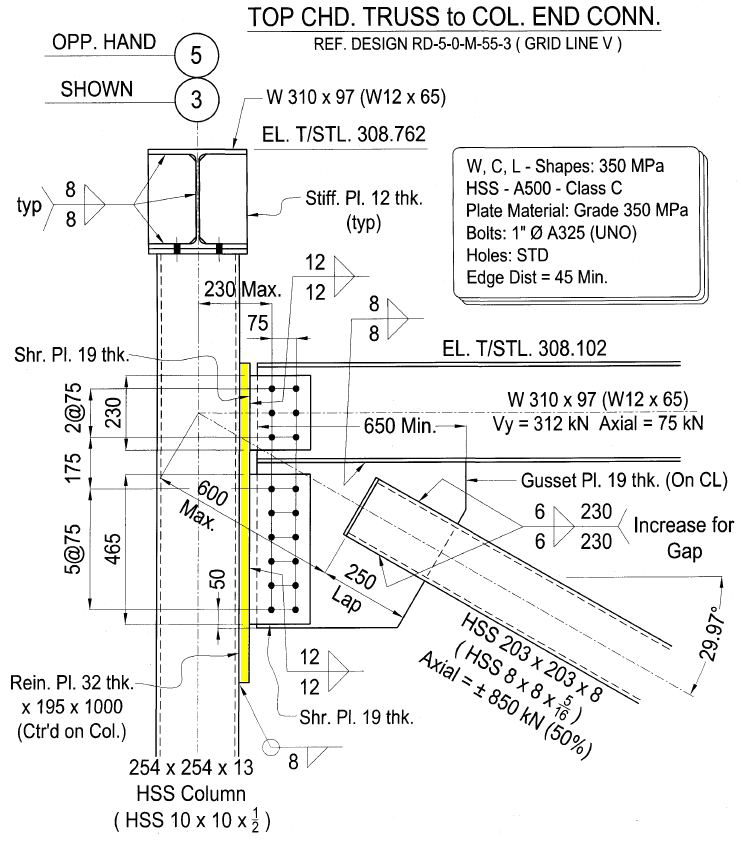

    Vertical Brace      BR-3        Youtube Tutorial     Vertical Brace      BR-4        Youtube Tutorial




    Knee Brace      BR-5        Youtube Tutorial     Knee Brace      BR-6        Youtube Tutorial

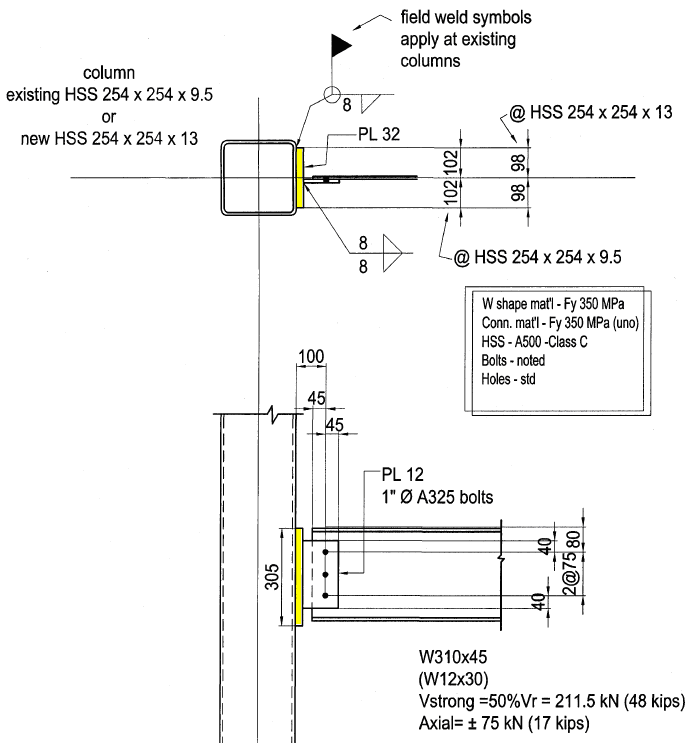

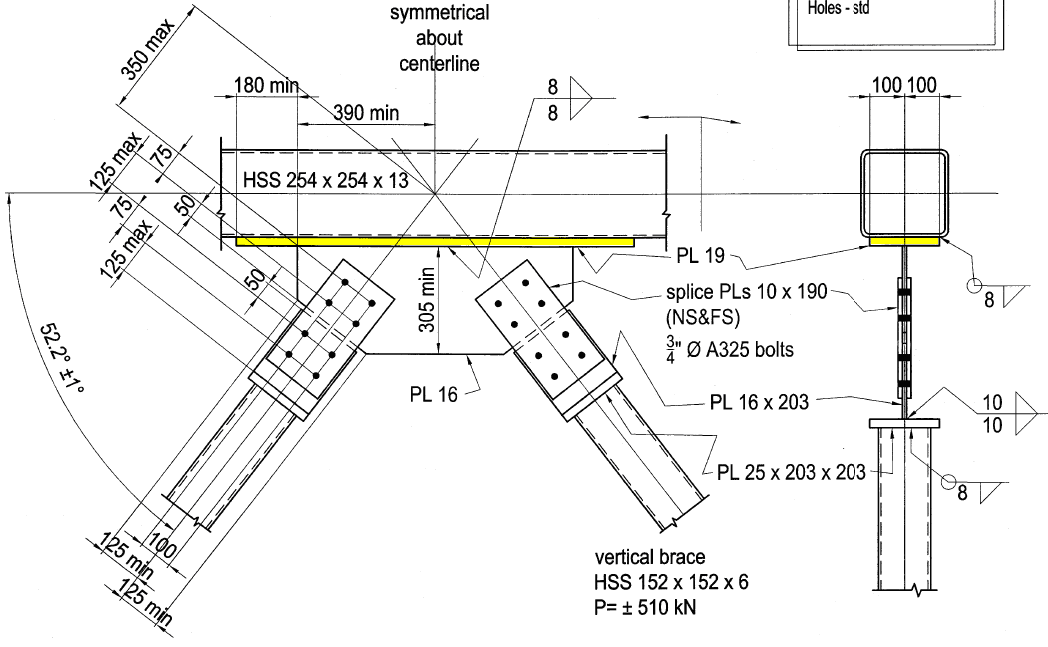

    Shear Connection      S-1        Youtube Tutorial     Chevron Brace      BR-8        Youtube Tutorial




    Chevron Brace       BR-9        Youtube Tutorial
