Horizontal Brace Connection - Tutorials


In this page we present tutorial videos to demo how to design horizontal brace connections using CivilBay steel connection program.

   Horizontal Brace Connection - Wrap Around Gusset Plate

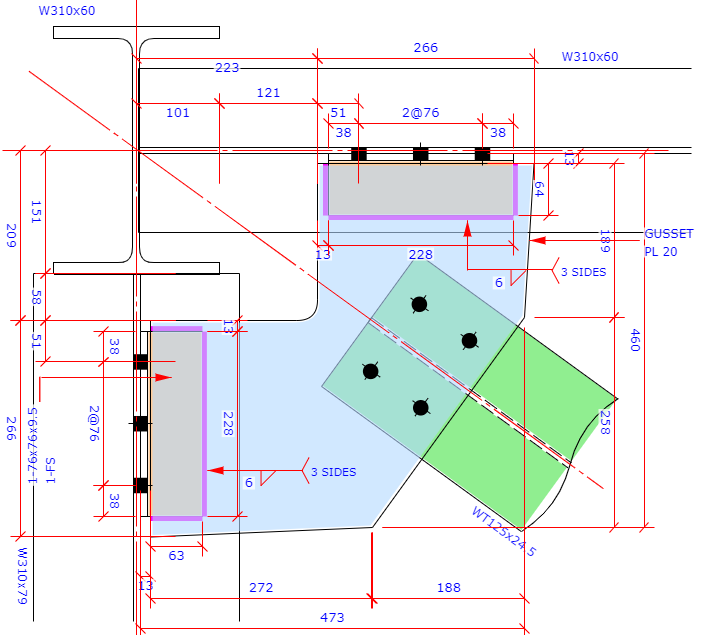

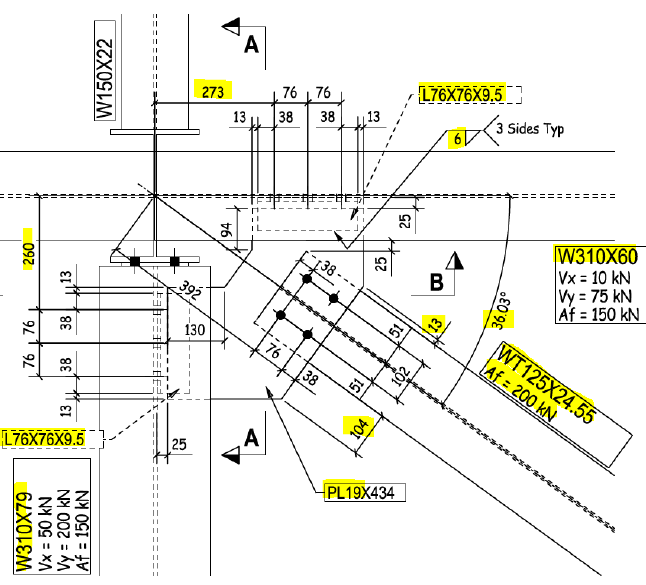

Hor Brace Wrap Around Gusset Plate - Detailing Sketch Hor Brace Wrap Around Gusset Plate - CivilBay Sketch



   Tutorial on Youtube           Working Sheet             Online Demo

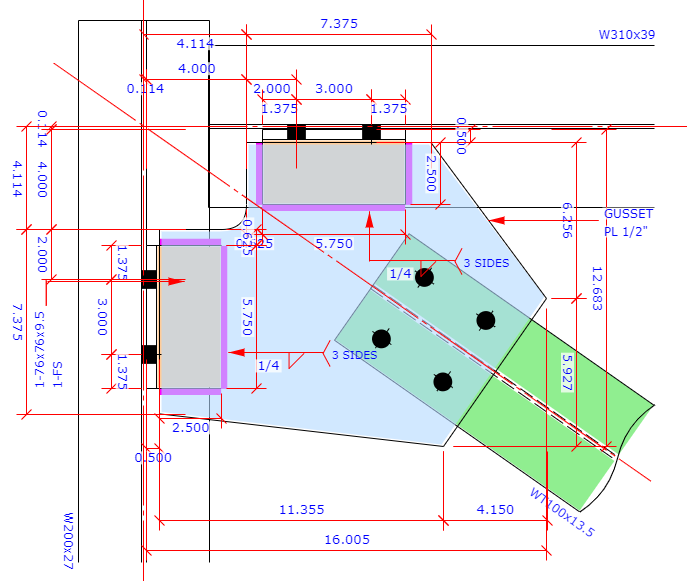

Hor Brace Wrap Around Gusset Plate - Detailing Sketch Hor Brace Wrap Around Gusset Plate - CivilBay Sketch



   Tutorial on Youtube         Working Sheet           Online Demo



   Horizontal Brace Connection - Chevron Brace

Sketch - Detailing



   Tutorial on Youtube            Working Sheet               Online Demo

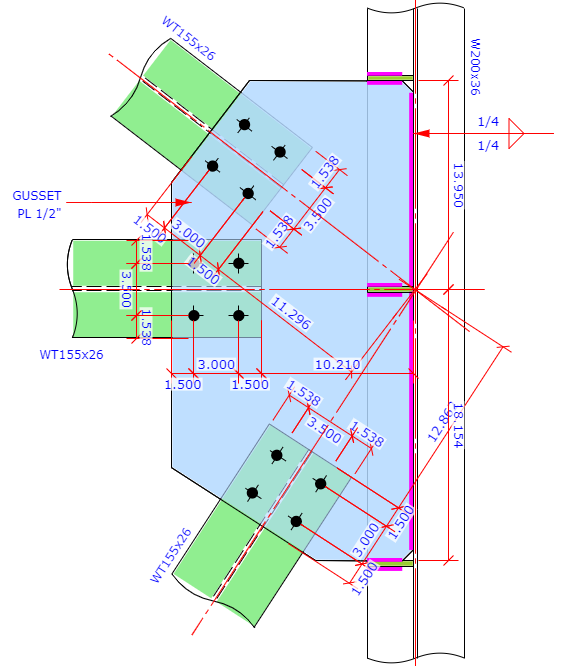

   Horizontal Brace Connection - Hor Strut Member

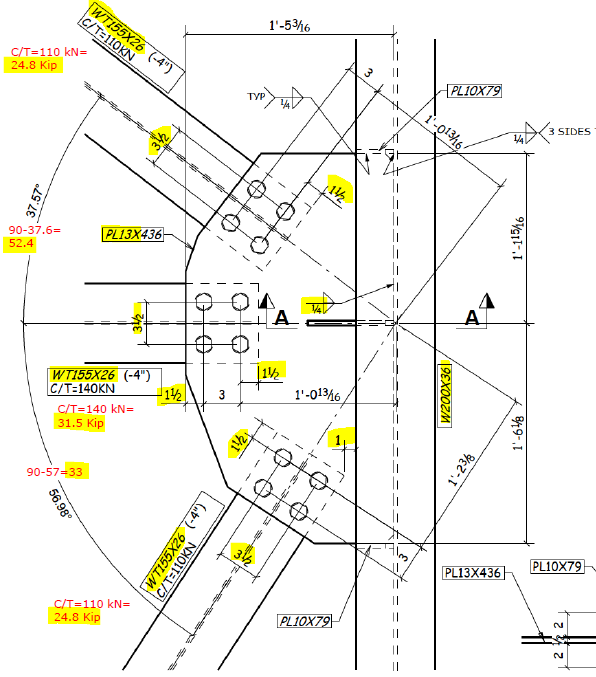

Hor Brace Hor Strut Member - Detailing Sketch Hor Brace Hor Strut Member - CivilBay Sketch



   Tutorial on Youtube           Working Sheet             Online Demo - 01           Online Demo - 02
