Brace Connection - Hor Strut Section Type


Hor strut which connects to gusset plate, may have the following connection types

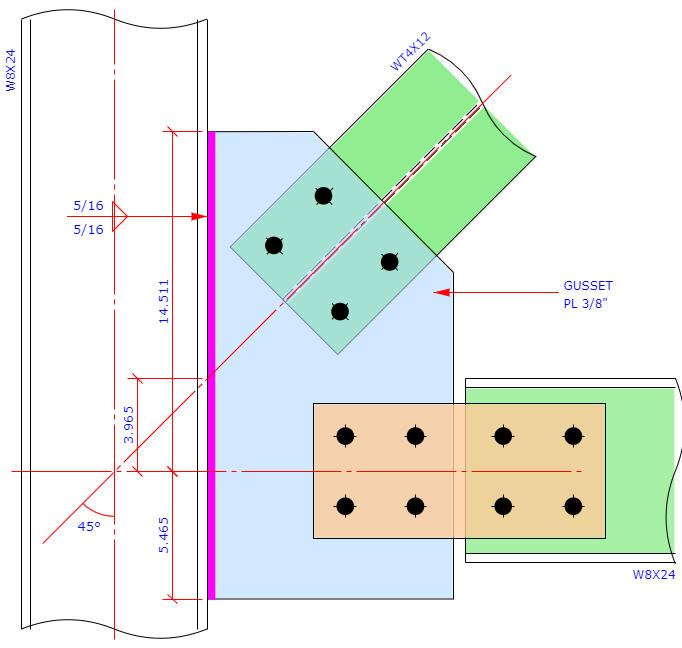

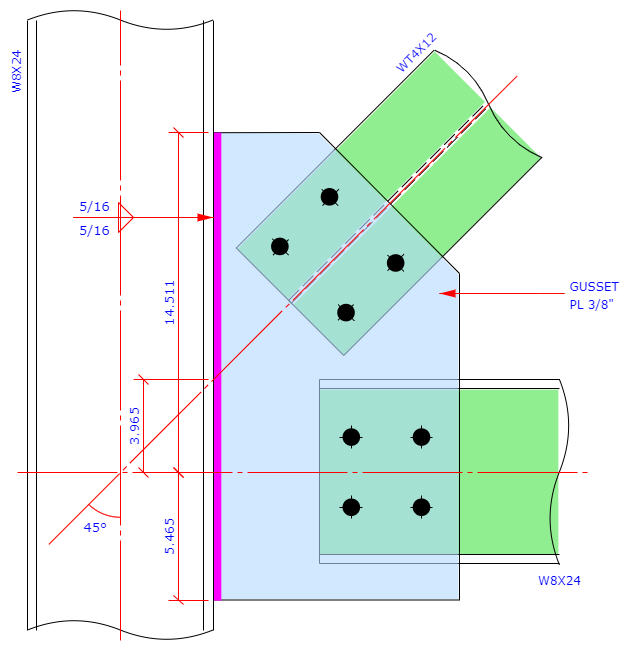

W1 W Shape with Blocked Flange W2 W Shape with Web Plate

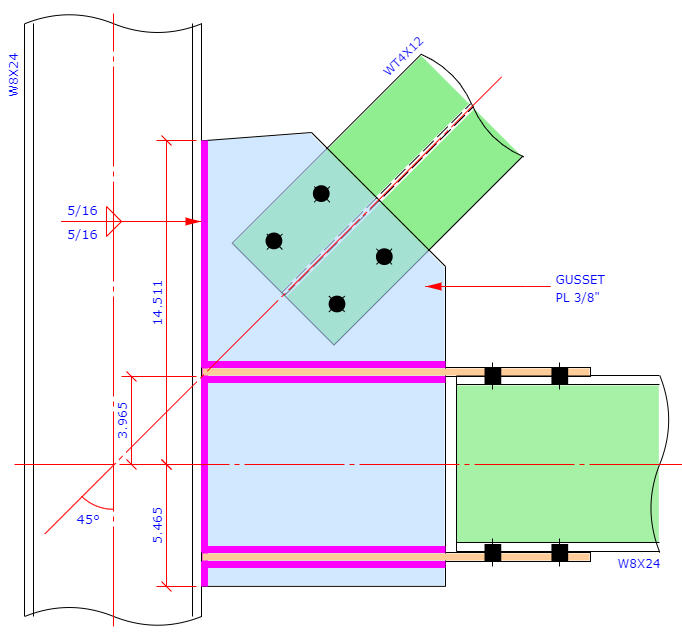

W3 W Shape with Sloted Flange PL - Bolted W4 W Shape with Sloted Flange PL - Welded

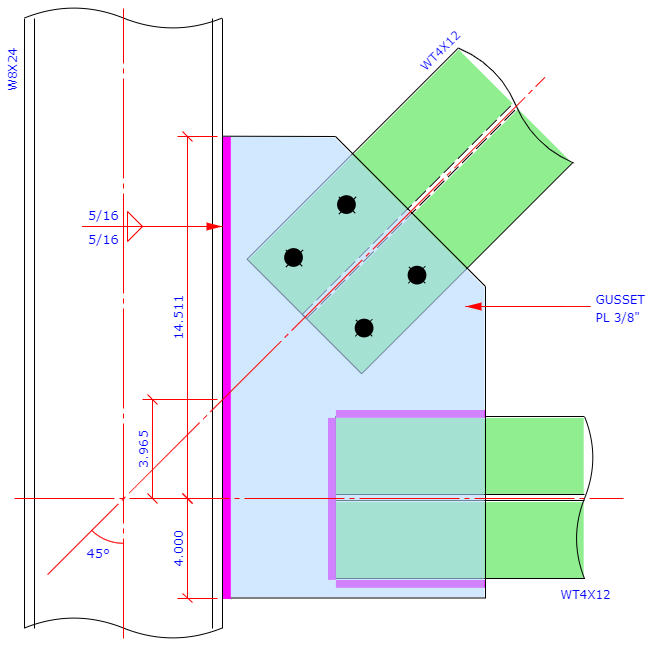

WT1 WT Shape - Bolted WT2 WT Shape - Welded

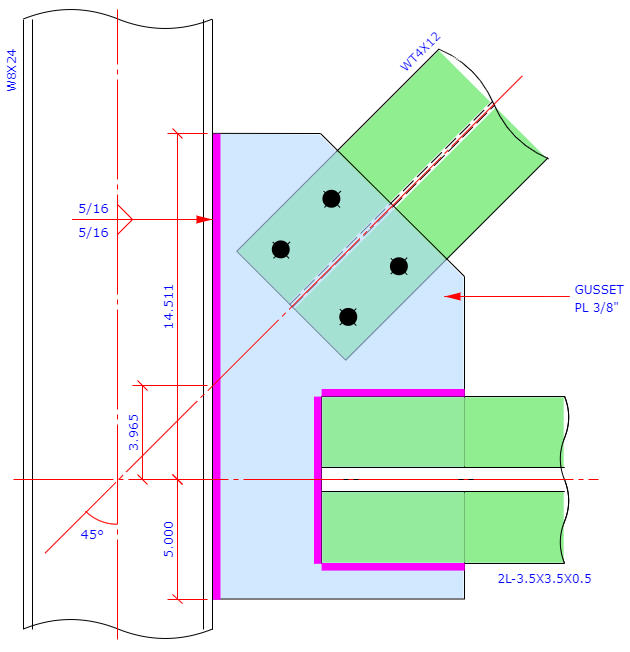

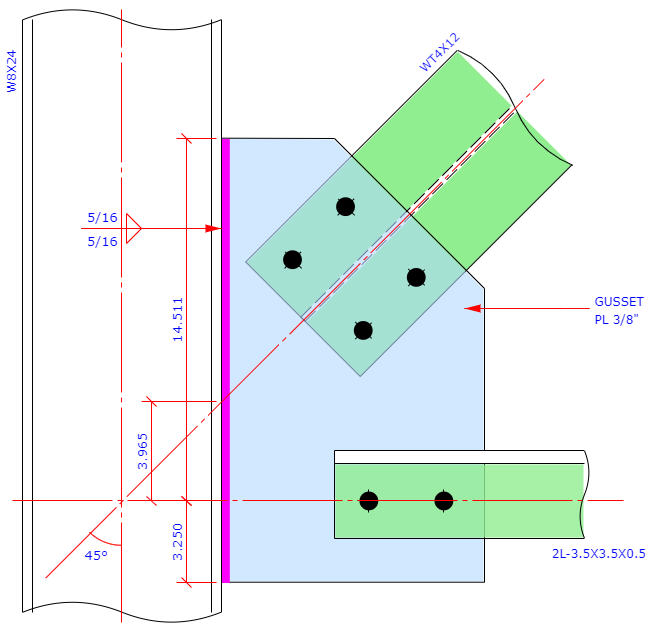

2L1 Double Angle Ver - Bolted 2L2 Double Angle Ver - Welded

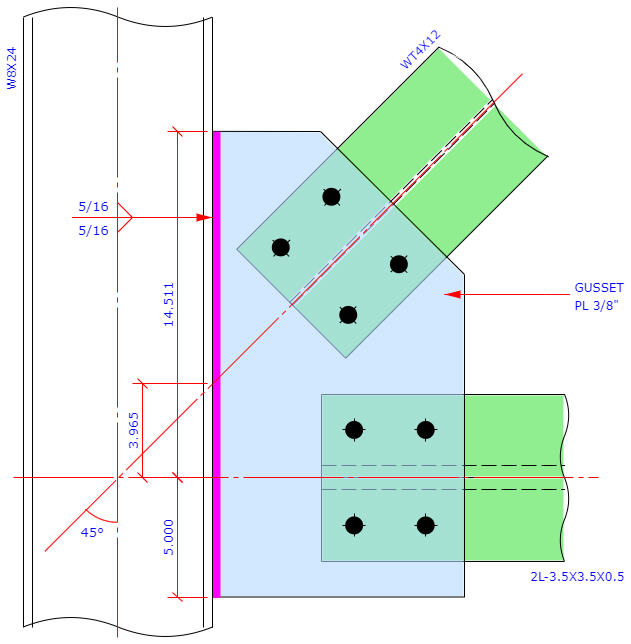

2L3 Double Angle Hor - Bolted 2L4 Double Angle Hor - Welded

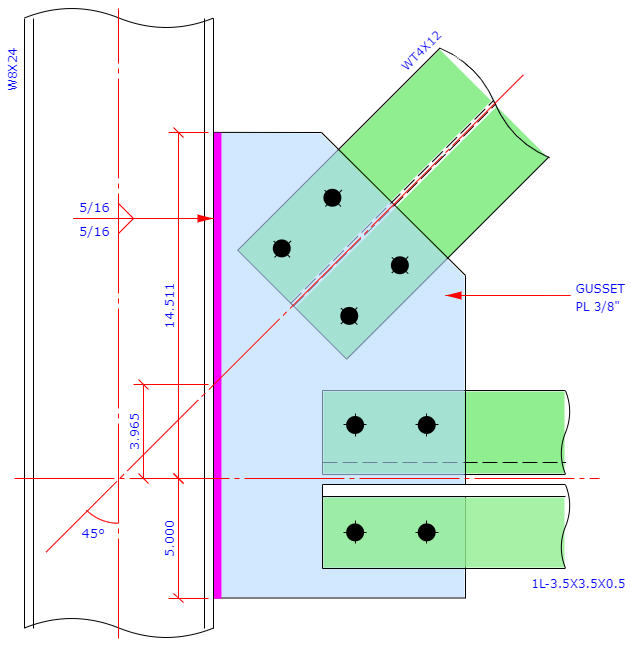

2L5 Double Angle Starred

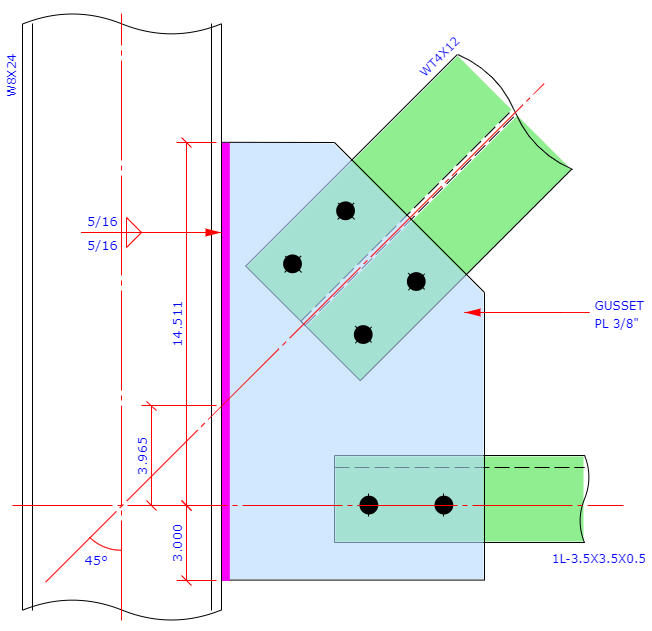

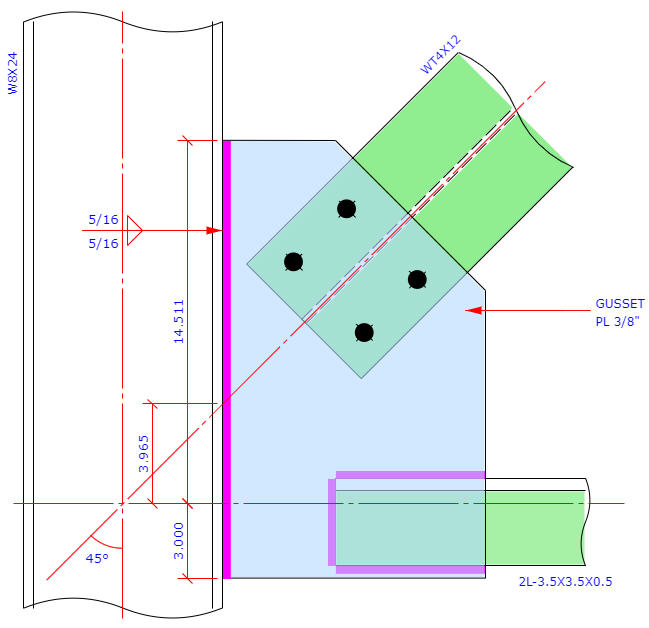

1L1 Single Angle - Bolted 1L2 Single Angle - Welded

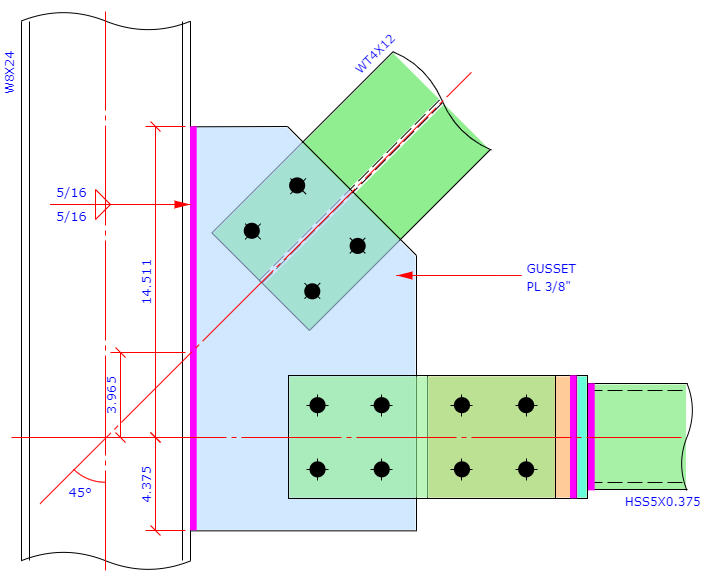

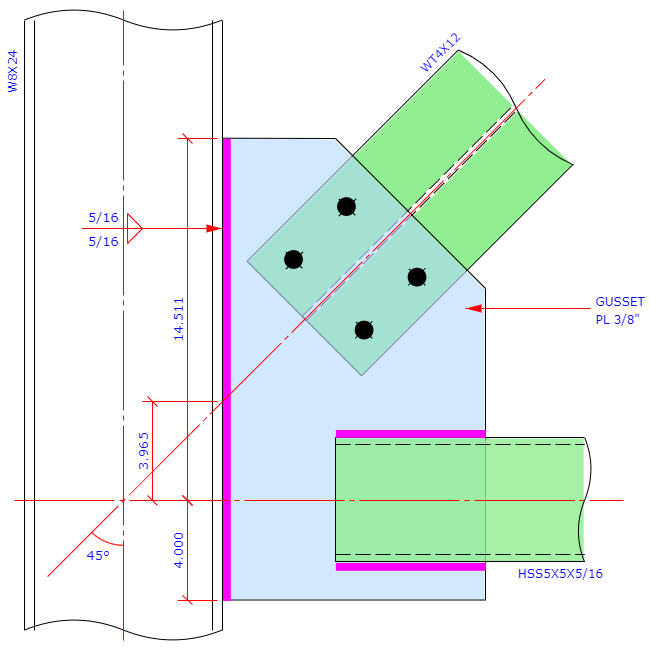

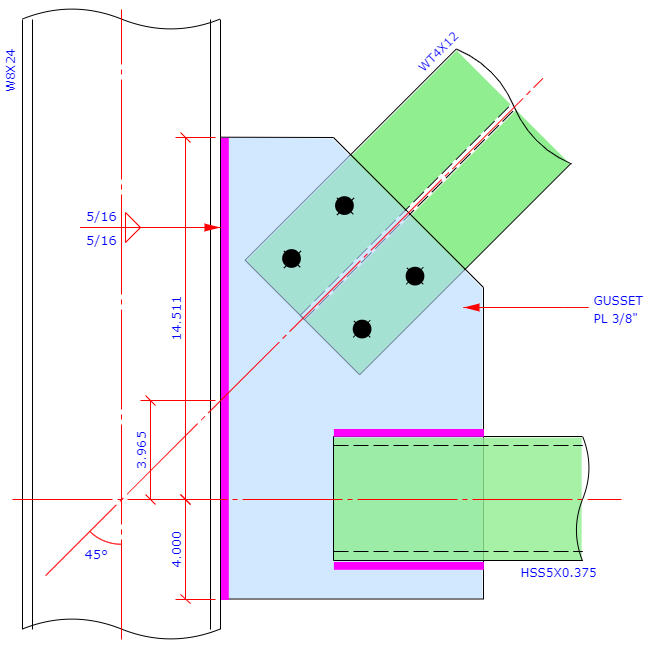

HS1 HSS Tee Attachment with Double Lap PL CS1 CHS Tee Attachment with Double Lap PL
HS2 HSS Slotted Around Gusset CS2 CHS Slotted Around Gusset
