Splice Connection Type


The followings are splice connection connection types

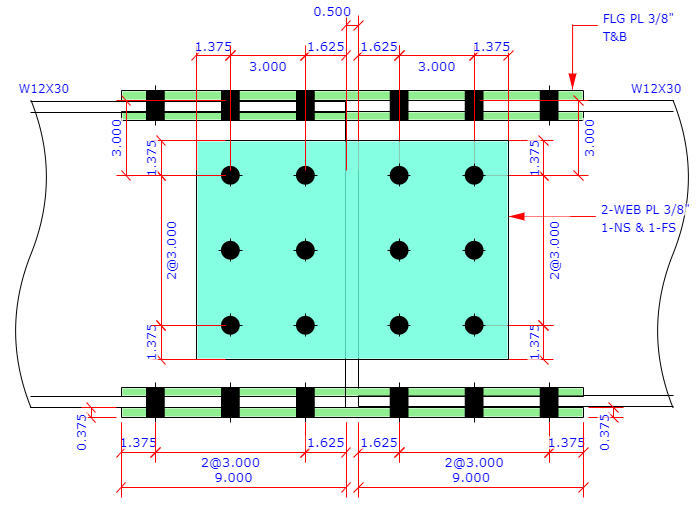

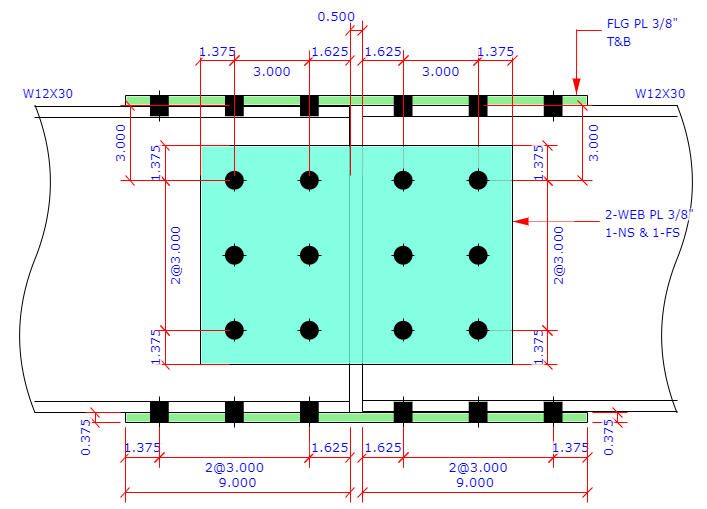

FP+WP  Flange Plate + Web Plate Splice - Exterior FP Only FP+WP  Flange Plate + Web Plate Splice - Exterior & Interior FP








FP+EP  Flange Plate + End Plate Splice FP+EP   Flange Plate + End Plate Splice - With Filler Plate

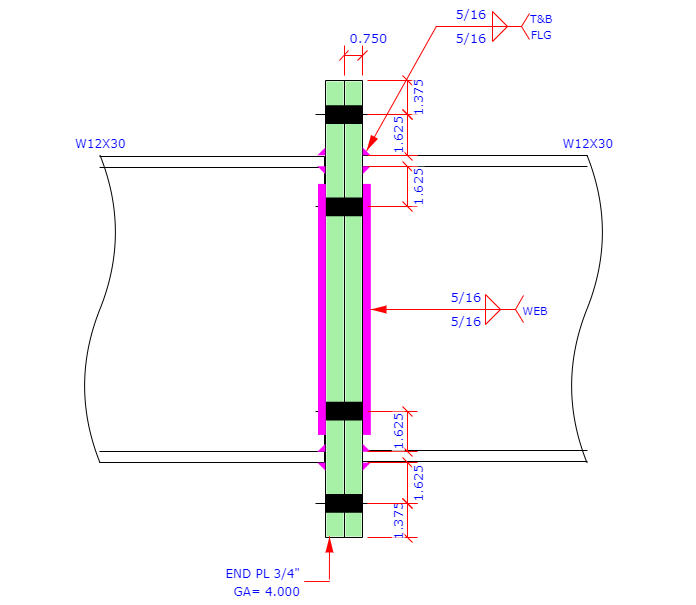

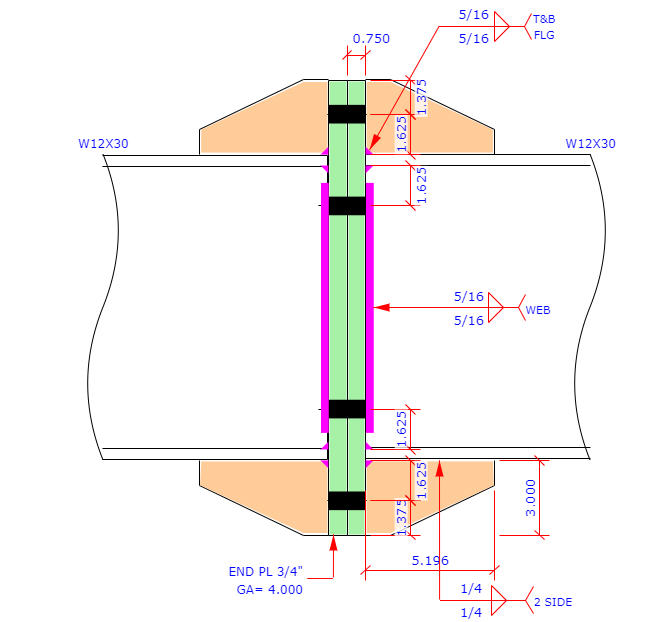

EP End Plate Splice - 4E EP End Plate Splice - 4ES

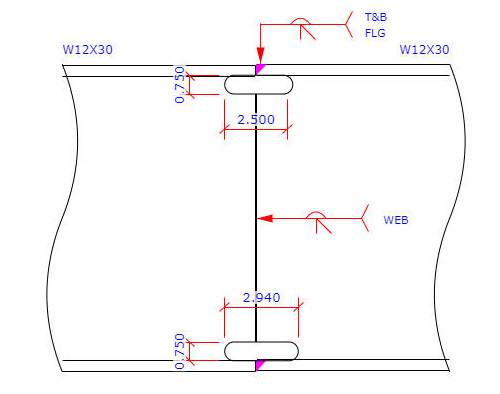

DW-Direct Weld Splice
