STUD ANCHOR DESIGN Combined Tension and Shear
Result Summary
Anchor Rod Embedment, Spacing and Edge Distance       OK
Min Rquired Anchor Reinft. Development Length ratio = 0.78 OK
Overall         ratio = 0.52 OK
Seismic Design         Tension =   OK
          Shear =   OK
Design Code Reference
Welded stud design based on                 Code Abbreviation
CSA A23.3-14 Design of Concrete Structures Annex D CSA A23.3-14
PIP STE05121 Anchor Bolt Design Guide-2006 PIP STE05121
                Code Reference
Welded Stud Data
Factored tensile force Nu = [kN]
Factored shear force Vu = [kN]
Concrete strength f'c = [MPa]
Welded stud material   =
Anchor tensile strength futa = 65.0 [MPa]         CSA A23.3-14
      Anchor is ductile steel element       D.2
Welded stud diameter da  = [in]   = 19.1 [mm]
Anchor effective cross section area Ase = 285 [mm2]
Welded stud head bearing area Abrg = [mm2]
                PIP STE05121
Welded stud embedment depth hef = [mm] 229   OK   Page A -1 Table 1
Pedestal height ha = [mm] 456   OK
                  PIP STE05121
Welded stud edge distance c1 c1 = [mm] 114   OK   Page A -1 Table 1
Welded stud edge distance c2 c2 = [mm] 114   OK
Welded stud edge distance c3 c3 = [mm] 114   OK
Welded stud edge distance c4 c4 = [mm] 114   OK
                  CSA A23.3-14
To be considered effective for resisting anchor tension, vertical reinforcing bars shall be located Figure D.10
within 0.5hef from the outmost anchor's centerline
Avg ver. bar center to anchor rod center distance dar = [mm]
Rebar specification   =
No of ver. rebar that are effective for resisting anchor tension nv =
Ver. rebar size No. = 25.4 [mm] single rebar area As = 509.0 [mm2]
Ver. rebar top anchorage option
                  CSA A23.3-14
To be considered effective for resisting anchor shear, hor. reinft shall be located Figure D.17B
within min( 0.5c1, 0.3c2 ) from the outmost anchor's centerline min (0.5c1, 0.3c2) = 38 [mm]

No of tie leg that are effective to resist anchor shear nleg =
No of tie layer that are effective to resist anchor shear nlay =
Hor. tie rebar size No. = 12.7 [mm] single rebar area As = 129.0 [mm2]
For anchor reinft shear breakout strength calc

Rebar yield strength - ver. rebar fy-v = [MPa]
Rebar yield strength - hor. rebar fy-h = [MPa]
                  CSA A23.3-14
Provide built-up grout pad ?   =           D.7.1.3

Seismic design IEFaSa(0.2) ≥0.35   =           D.4.3.3
Welded stud load E <= 0.2U Tensile =   Shear =   D.4.3.5.1 & D.4.3.6.1
Welded stud satisfies opion Tensile = Shear = D.4.3.5.3 & D.4.3.6.3

Strength resistance factors                 CSA A23.3-14
Concrete fc = 0.65           8.4.2
Steel anchor and reinforcing bar fs = 0.85   Rar = 0.85   8.4.3 a)  D.6.2.9   D.7.2.9
Anchor rod - ductile steel Rt,s = 0.80   Rv,s = 0.75   D.5.3 a)
Concrete - condition A Rt,c = 1.15   Rv,c = 1.15   D.5.3 c)
CONCLUSION

Anchor Rod Embedment, Spacing and Edge Distance       OK CSA A23.3-14
Min Rquired Anchor Reinft. Development Length ratio = 0.78 OK 12.5.1
Overall ratio = 0.52 OK
Tension
Anchor Rod Tensile Resistance ratio = 0.26 OK
Anchor Reinft Tensile Breakout Resistance ratio = 0.09 OK
Anchor Pullout Resistance ratio = 0.31 OK
Side Blowout Resistance ratio = 0.35 OK
Shear
Anchor Rod Shear Resistance ratio = 0.27 OK
Anchor Reinft Shear Breakout Resistance
      Strut Bearing Strength ratio = 0.11 OK
      Tie Reinforcement ratio = 0.14 OK
Conc. Pryout Not Govern When hef >= 12da       OK
Tension Shear Interaction
Tension Shear Interaction ratio = 0.52 OK

Seismic Design         CSA A23.3-14
Tension Applicable       OK D.4.3.5
Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option D is selected to satisfy additional seismic requirements as per D.4.3.5.3
                  CSA A23.3-14
Shear Applicable       OK D.4.3.6
Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option C is selected to satisfy additional seismic requirements as per D.4.3.6.3
Assumptions CSA A23.3-14
1. Concrete is cracked D.6.2.6, D.6.3.6, D.7.2.7
2. Condition A - supplementary reinforcement is provided D.5.3 c)
3. Anchors shall be designed for factored load combinations specified in CSA A23.3-14 clause 8 D.4.2
4. Anchor reinft strength is used to replace concrete tension / shear breakout strength as per D.6.2.9 & D.7.2.9
    CSA A23.3-14 Annex D clause D.6.2.9 and D.7.2.9
5. For tie reinft, only the top most 2 or 3 layers of ties (50mm from TOC and 2x75mm after) are
    effective
6. Strut-and-Tie model is used to anlyze the shear transfer and to design the required tie reinft CSA A23.3-14
7. Anchor reinft used in structures where Rd>2.5 shall meet requirements specified in D.4.3.8 D.4.3.8
CACULATION
Anchor Rod Tensile Resistance                 CSA A23.3-14
  Nsar = fs Ase futa Rt,s = 86.9 [kN] D.6.1.2  Eq D.2
  ratio = 0.26 > Nu OK

Anchor Reinft Tensile Breakout Resistance       CSA A23.3-14

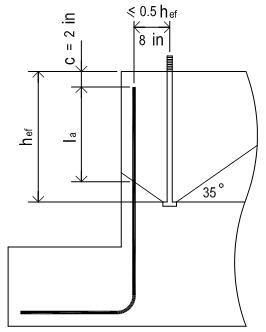

Min required full yield tension ldh ldh = 180 degree hook case = [mm] 12.5.2, 12.5.3 b)
Actual development lenngth la = hef - c (50mm) - dar x tan35 = [mm]
        > 203 OK 12.5.1

              CSA A23.3-14
Anchor reinft breakout resistance Nnr = fsx fy-vx nv Asx Rarx (la / ld , if la < ld) = 257.4 [kN] D.4.3.5.5, D.6.2.9, 12.2.5
  ratio = 0.09 > Nu OK

Anchor Pullout Resistance             CSA A23.3-14
Single bolt pullout resistance Npr = 8 Abrg fc fc' Rt,c = 94.3 [kN] D.6.3.4  Eq D.16
  Ncpr = Ψc,p Npr = 94.3 [kN] D.6.3.1  Eq D.15
  Ψc,p = 1 for cracked conc       D.6.3.6
  Rt,c = 1.00 pullout strength is always Condition B D.5.3 c)
Seismic design strength reduction   = x 0.75 applicable = 70.7 [kN] D.4.3.5.4
  ratio = 0.31 > Nu OK

Side Blowout Resistance
  c = min ( c1, c2, c3, c4 ) = 125 [mm]
Check if side blowout applicable hef = 380 [mm]         CSA A23.3-14
    > 2.5c side bowout is applicable D.6.4.1
Single anchor SB resistance Nsbr = = 167.3 [kN] D.6.4.1  Eq D.18
Edge reduction factor   = ( 1+ ca2 / ca1 ) / 4 = 0.50   D.6.4.1
SB resistance after edge reduction Nsbr = Nsbr x [1+ca2 / ca1] / 4 = 83.7 [kN] D.6.4.1
Seismic design strength reduction   = x 0.75 applicable = 62.8 [kN] D.4.3.5.4
  ratio = 0.35 > Nu OK

Govern Tensile Resistance Nr = min ( Nsar, Nnr, Ncpr, Nsbr ) =  62.8 [kN]

Anchor Rod Shear Resistance             CSA A23.3-14
  Vsar = fs Ase futa Rv,s = 81.5 [kN] D.7.1.2 a)  Eq D.30
Reduction due to built-up grout pad   = x 1.0 , not applicable = 81.5 [kN] D.7.1.3
  ratio = 0.27 > Vu OK

Anchor Reinft Shear Breakout Resistance       ACI 318M-11

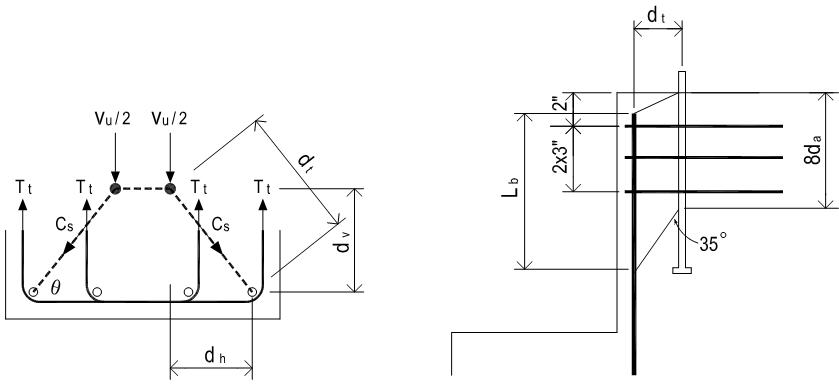

Strut-and-Tie model is used to anlyze the shear transfer and to design the required tie reinft
STM strength reduction factor fst = 0.75       9.3.2.6



Strut-and-Tie model geometry dv = 55 [mm] dh = 55 [mm]
  θ = 45    dt = 78 [mm]
Strut compression force Cs = 0.5 Vu / sinθ = 15.7 [kN]

Strut Bearing Strength             ACI 318M-11
Strut compressive strength fce = 0.85 f'c = 30.4 [MPa] A.3.2 (A-3)

* Bearing of welded stud             CSA A23.3-14
    Anchor bearing length le = min( 8da , hef ) = 152 [mm] D.7.2.2 a)
    Anchor bearing area Abrg  = le x da = 2903 [mm2]
    Anchor bearing resistance  Cr = 1 x fst x fce x Abrg = 66.3 [kN]
        > Vu OK
* Bearing of ver reinft bar
   Ver bar bearing area Abrg  = (le +1.5 x dt - da/2 -db/2) x db = 6270 [mm2]
   Ver bar bearing resistance  Cr = fst x fce x Abrg = 143.1 [kN]
   ratio = 0.11 > Cs OK

Tie Reinforcement
* For tie reinft, only the top most 2 or 3 layers of ties (50mm from TOC and 2x75mm after) are effective
* For enclosed tie, at hook location the tie cannot develop full yield strength fy . Use the pullout resistance in
    tension of a single hooked bolt as per CSA A23.3-14  Eq D.17 as the max force can be developed at hook Th
* Assume 100% of hor. tie bars can develop full yield strength

Total number of hor tie bar  n = nleg (leg) x nlay (layer) = 4
              CSA A23.3-14
Pull out resistance at hook Th = fc 0.9 fc' eh da Rt,c = 15.2 [kN] D.6.3.5  Eq D.17
  eh = 4.5 db = 57 [mm]

Single tie bar tension resistance Tr = fs x fy-h x As x Rar = 38.6 [kN] D.7.2.9  Eq D.43
              CSA A23.3-14
Total tie bar tension resistance Vnr = 1.0 x n x Tr = 154.3 [kN] D.4.3.6.4 & D.7.2.9
  ratio = 0.14 > Vu OK

Conc. Pryout Shear Resistance
The pryout failure is only critical for short and stiff anchors. It is reasonable to assume that for general
cast-in place headed anchors with hef > = 12da , the pryout failure will not govern

  12da = 229 [mm] hef = 380 [mm]
        > 12da OK

Govern Shear Resistance Vr = min ( Vsar , Vnr ) = 81.5 [kN]

Tension Shear Interaction             CSA A23.3-14
Check if Nu >0.2f Nn and Vu >0.2f Vn = Yes       D.8.2 & D.8.3
      Nu / f Nn + Vu / f Vn = 0.63   D.8.4  Eq D.46
  ratio = 0.52 < 1.2 OK

Seismic Design
Tension     Applicable     OK
Option D is selected. CSA A23.3-14
User has to ensure that the tensile load Nu user input above includes the seismic load E, with E increased
by multiplying overstrength factor RdRo=1.3 or as specified in NBCC clause 4.1.8.18		 D.4.3.5.3 d)

Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option D is selected to satisfy additional seismic requirements as per D.4.3.5.3

Shear     Applicable     OK
Option C is selected.             CSA A23.3-14
User has to ensure that the shear load Vu user input above includes the seismic load E, with E increased
by multiplying overstrength factor RdRo=1.3 or as specified in NBCC clause 4.1.8.18		 D.4.3.6.3 c)

Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option C is selected to satisfy additional seismic requirements as per D.4.3.6.3
