Development Length of Standard
Hook in Tension

---

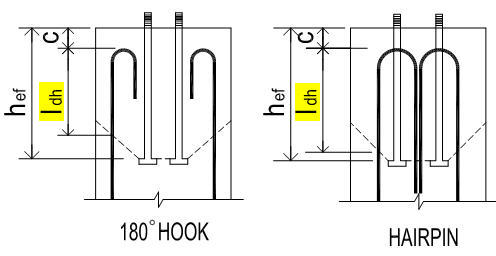

For 180 degree hook or hairpin option

l_dh = 100 / sqrt(fc’) d_b as per CSA A23.3-14
12.5.2 and 0.7 reduction factor is applied as
per CSA A23.3-14 12.5.3 b)

---
