ANCHOR BOLT DESIGN Combined Tension and Shear
Result Summary
Anchor Rod Embedment, Spacing and Edge Distance       Warn
Overall         ratio = 0.74 OK
Seismic Design         Tension =   OK
          Shear =   OK
Design Code Reference
Anchor bolt design based on                 Code Abbreviation
CSA A23.3-14 Design of Concrete Structures Annex D CSA A23.3-14
PIP STE05121 Anchor Bolt Design Guide-2006 PIP STE05121
                Code Reference
Anchor Bolt Data
Factored tensile force Nu = [kN]
Factored shear force Vu = [kN]
Concrete strength f'c = [MPa]
Anchor bolt material   =
Anchor tensile strength futa = 400 [MPa]         CSA A23.3-14
      Anchor is ductile steel element       D.2
Anchor bolt diameter da  = [in]   = 25.4 [mm]
Anchor bolt has sleeve   =           PIP STE05121
                PIP STE05121

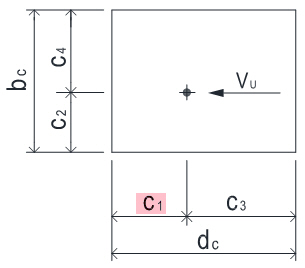

Anchor bolt edge distance c1 c1 = [mm] 114   OK   Page A -1 Table 1

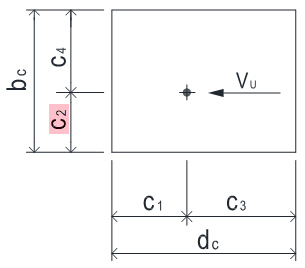

Anchor bolt edge distance c2 c2 = [mm] 114   OK

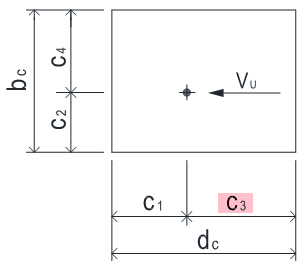

Anchor bolt edge distance c3 c3 = [mm] 114   OK

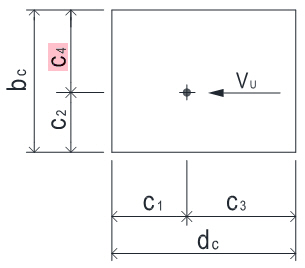

Anchor bolt edge distance c4 c4 = [mm] 114   OK

Anchor bolt embedment depth hef = [mm]         CSA A23.3-14
ci ≥ 1.5hef for at least two edges to avoid reducing of hef when Nu > 0   OK   D.6.2.3
Anchor bolt adjusted hef for design hef = [mm] 305   OK   D.6.2.3
Concrete thickness ha = [mm] 381   Warn

Anchor bolt head type
Anchor effective cross section area Ase = 391 [mm2]
Anchor bolt head bearing area Abrg = [mm2]

Anchor bolt 1/8" (3mm) corrosion allowance =           CSA A23.3-14
Supplementary reinforcement
        For tension   = Condition A       D.5.3 c)
        For shear Yc,v = Condition A       D.7.2.7
                  CSA A23.3-14
Provide built-up grout pad ?   =           D.7.1.3
Concrete cracking   =         D.6.2.6, D.6.3.6, D.7.2.7
                  CSA A23.3-14
Seismic design IEFaSa(0.2) ≥0.35   =           D.4.3.3
Anchor bolt load E <= 0.2U Tensile =   Shear =   D.4.3.5.1 & D.4.3.6.1
Anchor bolt satisfies opion Tensile = Shear = D.4.3.5.3 & D.4.3.6.3

Strength reduction factors                 CSA A23.3-14
Concrete fc = 0.65           8.4.2
Steel anchor and reinforcing bar fs = 0.85   Rar = 0.85   8.4.3 a)  D.6.2.9   D.7.2.9
Anchor rod - ductile steel Rt,s = 0.80   Rv,s = 0.75   D.5.3 a)
Concrete Rt,c = 1.15  Cdn-A Rv,c = 1.15  Cdn-A D.5.3 c)
CONCLUSION

Anchor Rod Embedment, Spacing and Edge Distance       Warn
Overall ratio = 0.74 OK
Tension
Anchor Rod Tensile Resistance ratio = 0.42 OK
Concrete Tensile Breakout Resistance ratio = 0.31 OK
Anchor Pullout Resistance ratio = 0.33 OK
Side Blowout Resistance ratio = 0.00 NA
Shear
Anchor Rod Shear Resistance ratio = 0.46 OK
Concrete Shear Breakout Resistance - Perpendicular To Edge ratio = 0.24 OK
Concrete Shear Breakout Resistance - Parallel To Edge ratio = 0.11 OK
Concrete Pryout Shear Resistance ratio = 0.09 OK
Tension Shear Interaction
Tension Shear Interaction ratio = 0.74 OK

Seismic Design         CSA A23.3-14
Tension Applicable       OK D.4.3.5
Option A is satisfied, provided the conditions in D.4.3.5.3 a) ii) sections 1) ~ 4), as applicable, are also met
Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option A is selected to satisfy additional seismic requirements as per D.4.3.5.3

Shear Applicable       OK D.4.3.6
Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option C is selected to satisfy additional seismic requirements as per D.4.3.6.3
Assumptions CSA A23.3-14
1. Concrete is cracked D.6.2.6, D.6.3.6, D.7.2.7
2. Condition A - supplementary reinforcement provided D.5.3 c)
3. Anchors shall be designed for factored load combinations specified in CSA A23.3-14 clause 8 D.4.2
4. Tensile load acts through center of bolt group Yec,N =1.0 D.6.2.4
5. Shear load acts through center of bolt group Yec,V =1.0 D.7.2.5
CACULATION
Anchor Rod Tensile Resistance                 CSA A23.3-14
  Nsar = fs Ase futa Rt,s = 106.3 [kN] D.6.1.2  Eq D.2
  ratio = 0.42 > Nu OK

Concrete Tensile Breakout Resistance       CSA A23.3-14
  Nbr = 10fc√fchef1.5Rtc hef<275 or hef>625 = 241.1 [kN] D.6.2.2  Eq D.6
      3.9 fc √fc hef(5/3) Rtc 275≤ hef ≤625       D.6.2.2  Eq D.7
Projected conc failure area 1.5 hef =   = 458 [mm]
  ANC = [min(c1,1.5hef)+min(c3,1.5hef)]x = 7.0E+05 [mm2]
      [min(c2,1.5hef)+min(c4,1.5hef)]
  ANCO = 9 hef2 = 8.4E+05 [mm2] D.6.2.1  Eq D.5
  ANC = min ( ANC, 1x ANCO ) = 7.0E+05 [mm2] D.6.2.1
Min edge distance cmin = min( c1, c2, c3, c4 ) = 380 [mm]
Eccentricity effects Ψec,N = 1.0  for no eccentric load       D.6.2.4
Edge effects Ψed,N = min[ (0.7+0.3cmin/1.5hef), 1.0 ] = 0.95   D.6.2.5
Concrete cracking Ψc,N = 1  for cracked concrete       D.6.2.6
Concrete splitting Ψcp,N = 1.00  for cast-in anchor       D.6.2.7

Concrete breakout resistance Ncbgr =
ANC Ψec,N Ψed,N Ψc,N Ψcp,N Nbr
ANCO
= 191.7 [kN] D.6.2.1 Eq D.4

Seismic design strength reduction   = x 0.75 applicable = 143.8 [kN] D.4.3.5.4
  ratio = 0.31 > Nu OK

Anchor Pullout Resistance             CSA A23.3-14
Single bolt pullout resistance Npr = 8 Abrg fc fc' Rt,c = 180.3 [kN] D.6.3.4  Eq D.16
  Ncpr = Ψc,p Npr = 180.3 [kN] D.6.3.1  Eq D.15
  Ψc,p = 1.00  for cracked concrete       D.6.3.6
  Rt,c = 1.00 pullout strength is always Condition B D.5.3 c)
Seismic design strength reduction   = x 0.75 applicable = 135.2 [kN] D.4.3.5.4
  ratio = 0.33 > Nu OK

Side Blowout Resistance
  c = min ( c1, c2, c3, c4 ) = 380 [mm]
Check if side blowout applicable hef = 305 [mm]         CSA A23.3-14
    < 2.5c side bowout is NOT applicable D.6.4.1
Single anchor SB resistance Nsbr = = 0.0 [kN] D.6.4.1  Eq D.18
Edge reduction factor   = ( 1+ ca2 / ca1 ) / 4 = 0.50   D.6.4.1
SB resistance after edge reduction Nsbr = Nsbr x [1+ca2 / ca1] / 4 = 0.0 [kN] D.6.4.1
Seismic design strength reduction   = x 0.75 applicable = 0.0 [kN] D.4.3.5.4
  ratio = 0.00 Nu NA

Govern Tensile Resistance Nr = min ( Nsar, Ncbr, Ncpr, Nsbr ) =  106.3 [kN]

Anchor Rod Shear Resistance             CSA A23.3-14
  Vsar = fs 0.6 Ase futa Rv,s = 59.8 [kN] D.7.1.2 b)  Eq D.31
Reduction due to built-up grout pad   = x 0.8 , applicable = 47.8 [kN] D.7.1.3
  ratio = 0.46 > Vu OK

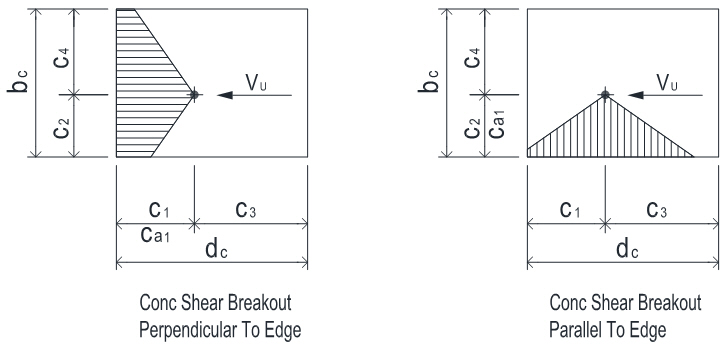

Conc. Shear Breakout Resistance - Perpendicular To Edge



Bolt edge distance ca1 = c1 = 380 [mm] CSA A23.3-14
Limiting ca1 when anchors are influenced by 3 or more edges = No   D.7.2.4
Bolt edge distance - adjusted ca1 = ca1 needs NOT to be adjusted = 380 [mm] D.7.2.4
  1.5ca1 =   = 570 [mm] CSA A23.3-14
  Avc = [min(c2,1.5ca1)+ s2 +min(c4,1.5ca1)]x = 3.6E+05 [mm2] D.7.2.1
      min(1.5ca1, ha)       CSA A23.3-14
  Avco = 4.5ca12 = 6.5E+05 [mm2] D.7.2.1  Eq D.34
  Avc = min ( Avc, 1x Avco ) = 3.6E+05 [mm2] D.7.2.1
  le = min( 8da , hef ) = 203 [mm] D.7.2.2 a)
  Vb1 = = 146.8 [kN] D.7.2.2 a)  Eq D.35
  Vb2 = = 124.2 [kN] D.7.2.2 b)  Eq D.36
  Vb = min( Vb1 , Vb2 ) = 124.2 [kN] D.7.2.2 a)
Eccentricity effects Ψec,v = 1.0 shear acts through center of group       D.7.2.5
Edge effects Ψed,v = min[ (0.7+0.3c2/1.5c1), 1.0 ] = 0.90   D.7.2.6
Concrete cracking Ψc,v = concrete is cracked = 1.20   D.7.2.7
Member thickness Ψh,v = max[ (sqrt(1.5c1 / ha) , 1.0 ] = 1.22   D.7.2.8
              CSA A23.3-14
Conc shear breakout resistance Vcbr =
Avc Ψec,v Ψed,v Ψc,v Ψh,v Vb
Avco
= 91.3 [kN] D.7.2.1  Eq D.33
- perpendicular to edge
  ratio = 0.24 > Vu OK

Conc. Shear Breakout Resistance - Parallel To Edge

Bolt edge distance ca1 = min(c2 , c4) = 380 [mm] CSA A23.3-14
Limiting ca1 when anchors are influenced by 3 or more edges = No   D.7.2.4
Bolt edge distance - adjusted ca1 = ca1 needs NOT to be adjusted = 380 [mm] D.7.2.4
  1.5ca1 =   = 570 [mm] CSA A23.3-14
  Avc = [min(c1,1.5ca1) + s1+ min(c3,1.5ca1)]x = 3.6E+05 [mm2] D.7.2.1
      min(1.5ca1, ha)       CSA A23.3-14
  Avco = 4.5ca12 = 6.5E+05 [mm2] D.7.2.1  Eq D.34
  Avc = min ( Avc, nbd Avco ) = 3.6E+05 [mm2] D.7.2.1
  le = min( 8da , hef ) = 203 [mm] D.7.2.2 a)
  Vb1 = = 146.8 [kN] D.7.2.2 a)  Eq D.35
  Vb2 = = 124.2 [kN] D.7.2.2 b)  Eq D.36
  Vb = min( Vb1 , Vb2 ) = 124.2 [kN] D.7.2.2 a)
Eccentricity effects Ψec,v = 1.0 shear acts through center of group       D.7.2.5
Edge effects Ψed,v =   = 1.00   D.7.2.1 c)
Concrete cracking Ψc,v = concrete is cracked = 1.20   D.7.2.7
Member thickness Ψh,v = max[ (sqrt(1.5ca1 / ha) , 1.0 ] = 1.22   D.7.2.8
              CSA A23.3-14
Conc shear breakout resistance Vcbr-p =
2x  Avc Ψec,v Ψed,v Ψc,v Ψh,v Vb
Avco
= 202.9 [kN] D.7.2.1  Eq D.33
- parallel to edge             D.7.2.1 c)
  ratio = 0.11 > Vu OK

Conc. Pryout Shear Resistance             CSA A23.3-14
  kcp = 2.0       D.7.3
Factored shear pryout resistance Vcpr = kcp Ncbr = 333.4 [kN] D.7.3  Eq D.45
  Rv,c = 1.00  pryout strength is always Condition B   D.5.3 c)

Seismic design strength reduction   = x 0.75 applicable = 250.0 [kN] D.4.3.5.4
  ratio = 0.09 > Vu OK

Govern Shear Resistance Vr = min ( Vsar , Vcbr , Vcbr-p , Vcpr ) = 47.8 [kN]

Tension Shear Interaction             CSA A23.3-14
Check if Nu >0.2f Nn and Vu >0.2f Vn = Yes       D.8.2 & D.8.3
      Nu / f Nn + Vu / f Vn = 0.88   D.8.4  Eq D.46
  ratio = 0.74 < 1.2 OK

Seismic Design
Tension     Applicable     OK
Option A is selected. CSA A23.3-14
The program will flag OK if D.4.3.5.3 a) i) section 1) ~ 2) are met and the ductile anchor steel strength
has the highest utilization ratio.  User has to verify the conditions in D.4.3.5.3 a) ii) section 1) ~ 4), as applicable, are met. 		D.4.3.5.3 a)

Anchor probable steel strength fya = 248.2 [MPa] Ag Ry fya =  138.4 [kN] D.4.3.5.3 a) i)
Nominal conc governed strength Ncb = 256.4 [kN] Ncp = 277.3 [kN]
   Nsb = 0.0 [kN]
Nu / min( Ncb , Ncp , Nsb ) = 0.17   Nu / AgRyfya = 0.32
          > 0.17 OK

Option A is satisfied, provided the conditions in D.4.3.5.3 a) ii) sections 1) ~ 4), as applicable, are also met

Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option A is selected to satisfy additional seismic requirements as per D.4.3.5.3

Shear     Applicable     OK
Option C is selected.             CSA A23.3-14
User has to ensure that the shear load Vu user input above includes the seismic load E, with E increased
by multiplying overstrength factor RdRo=1.3 or as specified in NBCC clause 4.1.8.18		 D.4.3.6.3 c)

Seismic IEFaSa(0.2)>=0.35 and E>0.2U , Option C is selected to satisfy additional seismic requirements as per D.4.3.6.3
