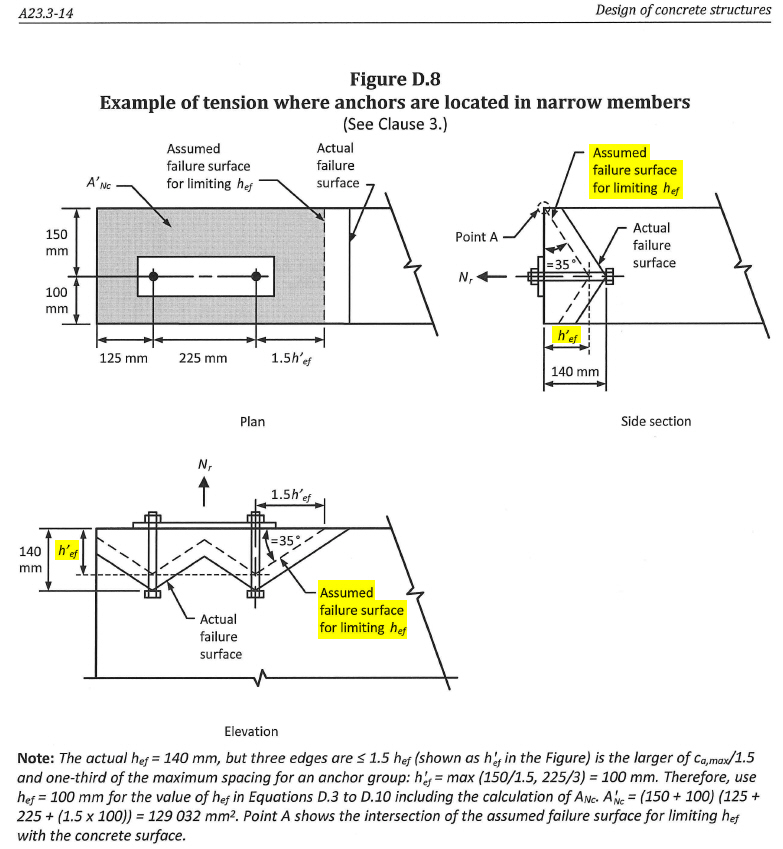

Anchor Embedment h_ef To Be Shortened When
Anchor Located in Narrow Member

---

CSA A23.3-14 D.6.2.3

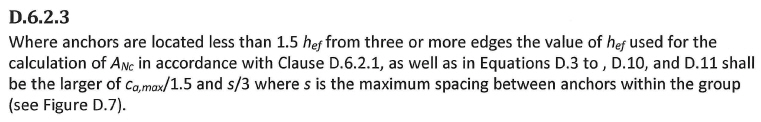

For anchors located less than 1.5h_ef from three or more edges,
the h_ef used to calculate tensile breakout strength in Eq. D.3 to
D.10, and D.11 shall be reduced and adjusted as per
CSA A23.3-14 D.6.2.3

---

CSA A23.3-14 D.6.2.3
