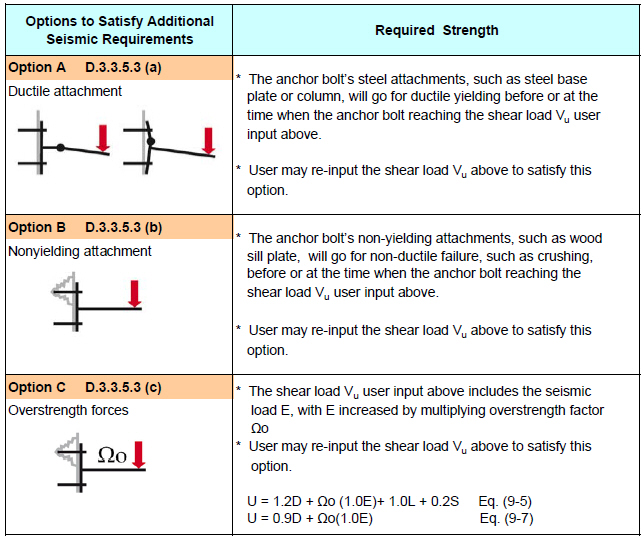

Shear - Options to Satisfy Additional Seismic Requirements
ACI 318-11 D.3.3.5.3 (a) ~ (c)
This input is
required when
Seismic SDC >= C (D.3.3.1)
AND
Shear E >
0.2U (D.3.3.5.2)User can ignore this input when
Seismic SDC < C (D.3.3.1)
OR
Shear E <=
0.2U (D.3.3.5.1)
If
user selects
Option C below, check this
help file
for more details on Ω
o factor
If
user selects
Option C above, check this
help file
for more details on Ω
o factor
