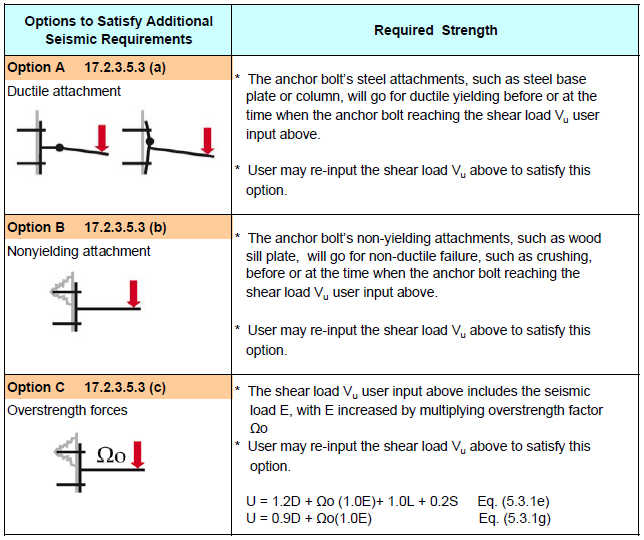

Shear - Options to Satisfy Additional Seismic Requirements

---

ACI 318-14 17.2.3.5.3 (a) ~ (c)

This input is required          when   Seismic SDC >= C (17.2.3.1)       AND
                                                   Shear E > 0.2U      (17.2.3.5.2)

User can ignore this input  when   Seismic SDC < C     (17.2.3.1)       OR
                                                  Shear E <= 0.2U     (17.2.3.5.1)

If user selects Option C below, check this help file for more details on Ω_o factor



If user selects Option C above, check this help file for more details on Ω_o factor
