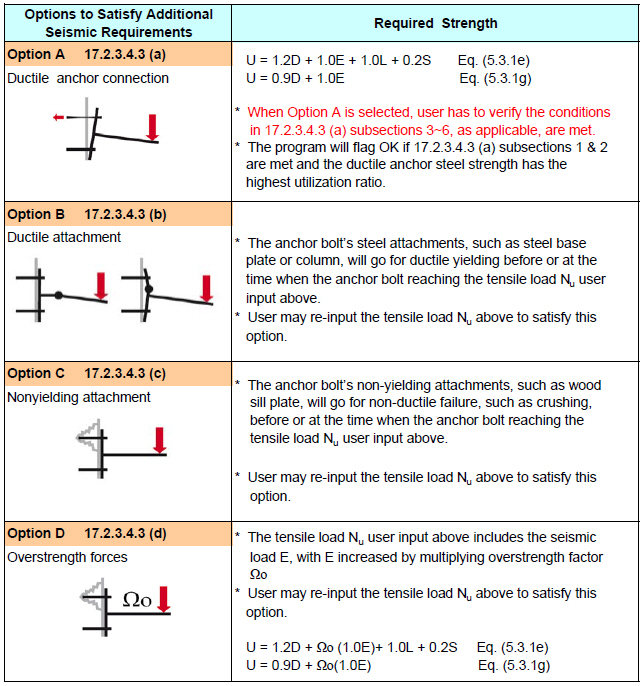

Tensile - Options to Satisfy Additional Seismic Requirements
ACI 318-14 17.2.3.4.3 (a) ~ (d)
This input is
required when
Seismic SDC >= C (17.2.3.1) AND
Tensile E > 0.2U (17.2.3.4.2)User can ignore this input when
Seismic SDC < C (17.2.3.1)
OR
Tensile E <= 0.2U (17.2.3.4.1)
If
user selects
Option D below, check this
help file
for more details on Ω
o factor
If
user selects
Option D above, check this
help file
for more details on Ω
o factor
