Anchor Bolt Tensile Load Seismic Component E<=0.2U

---

ACI 318-14 17.2.3.4.1

This input is required when seismic SDC>=C
User can ignore this input when seismic SDC=A or B

Select Yes when E <= 0.2U
Select No   when E > 0.2U

E - Seismic component in the total factored tensile load
      N_u user input above
U - Total factored tensile load N_u user input above

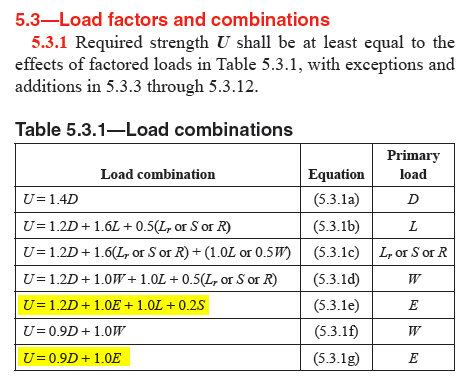

Below are load combinations from ACI 318-14 5.3.1 by
which user uses to get the total factored tensile load N_u
for anchor bolt design.

---

 ACI 318-14  5.3.1



---

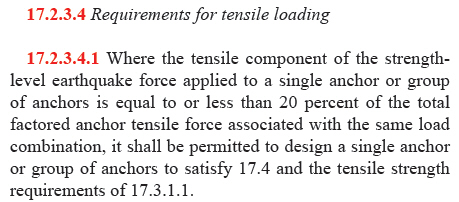

ACI 318-14 17.2.3.4.1
