Max Spacing Between Anchors in Tension
Maximum spacing between anchors within the group of all tension
anchors.

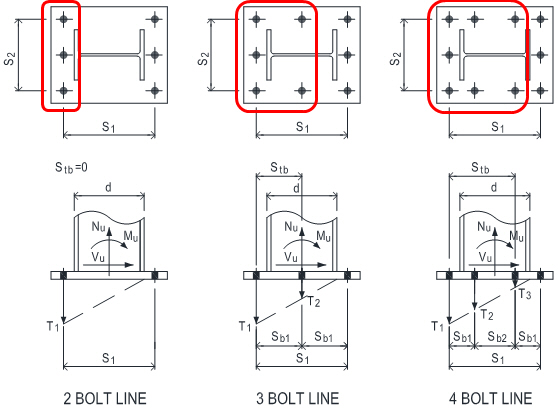

The group of anchors here are anchors inside redline area
as shown
below.
This input is used to calculate the reduced h
ef
when anchors are
located less than 1.5h
ef from three or more
edges as per
ACI 318-14 17.4.2.3.
This
input is calculated by the program based on user's other inputs.
