Anchor Embedment h_ef To Be Shortened When
Anchor Located in Narrow Member

---

ACI 318-14 17.4.2.3

For anchors located less than 1.5h_ef from three or more edges,
the h_ef used to calculate tensile breakout strength in 17.4.2.1
to 17.4.2.5 shall be reduced and adjusted as per ACI 318-14
17.4.2.3

---

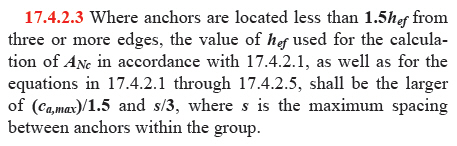

ACI 318-14 17.4.2.3
